Baomeng 100 ampere 1200 volt diode bridge rectifier metal 100

【High Power Rectification】 Rated for a maximum output current of 100A and a repetitive peak reverse voltage of 1200V, this QL100A bridge rectifier is engineered to handle high-power industrial electrical loads with stable performance

• 【Efficient AC to DC Conversion】 Seamlessly convert single-phase alternating current (AC) input into direct current (DC) output. Ideal for power supplies, motor controls, and battery charging systems requiring reliable rectification

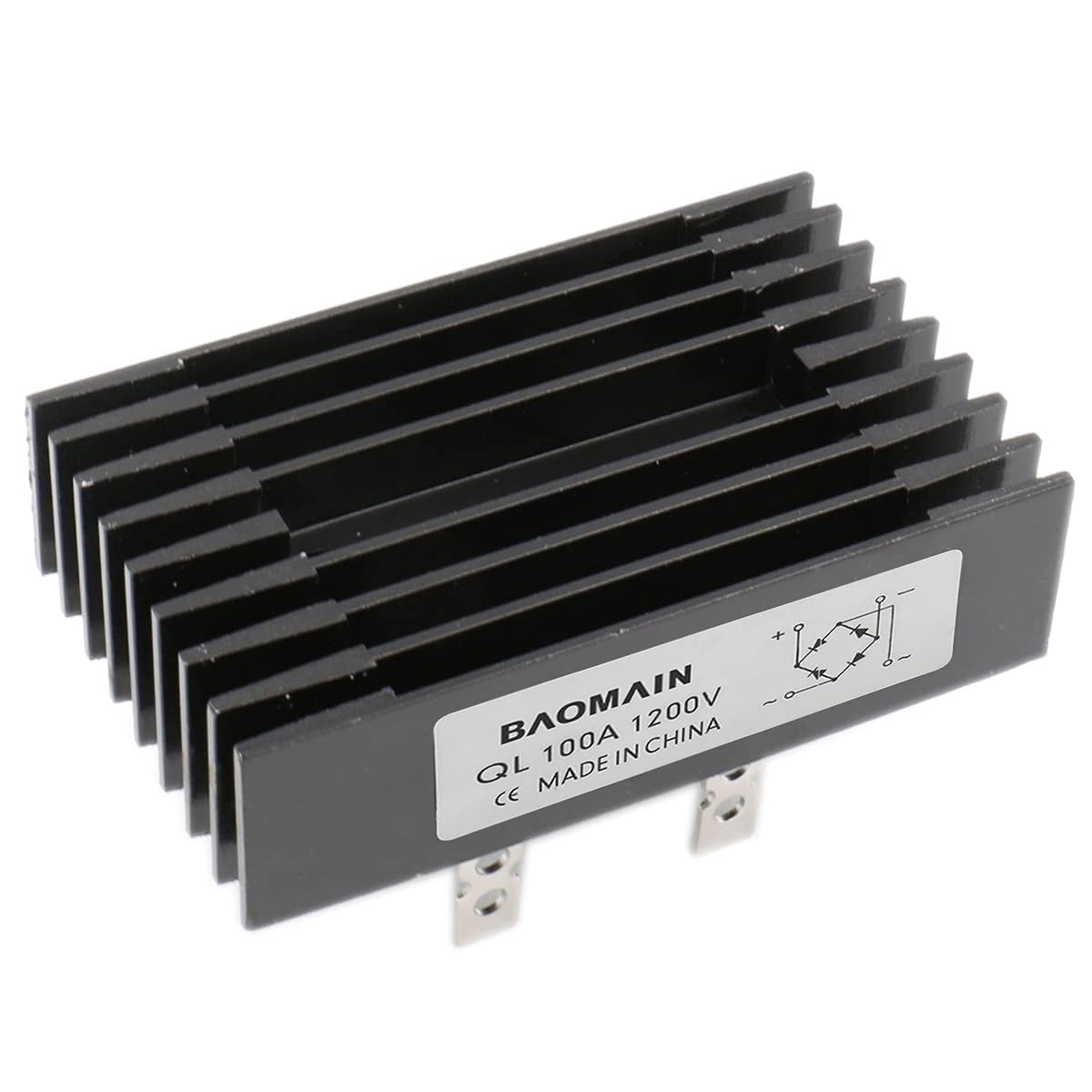

• 【Integrated Heatsink Design】 Features a robust metal housing with an integrated aluminum heatsink for superior heat dissipation. This design prevents overheating during continuous operation, significantly extending the service life of the diode bridge

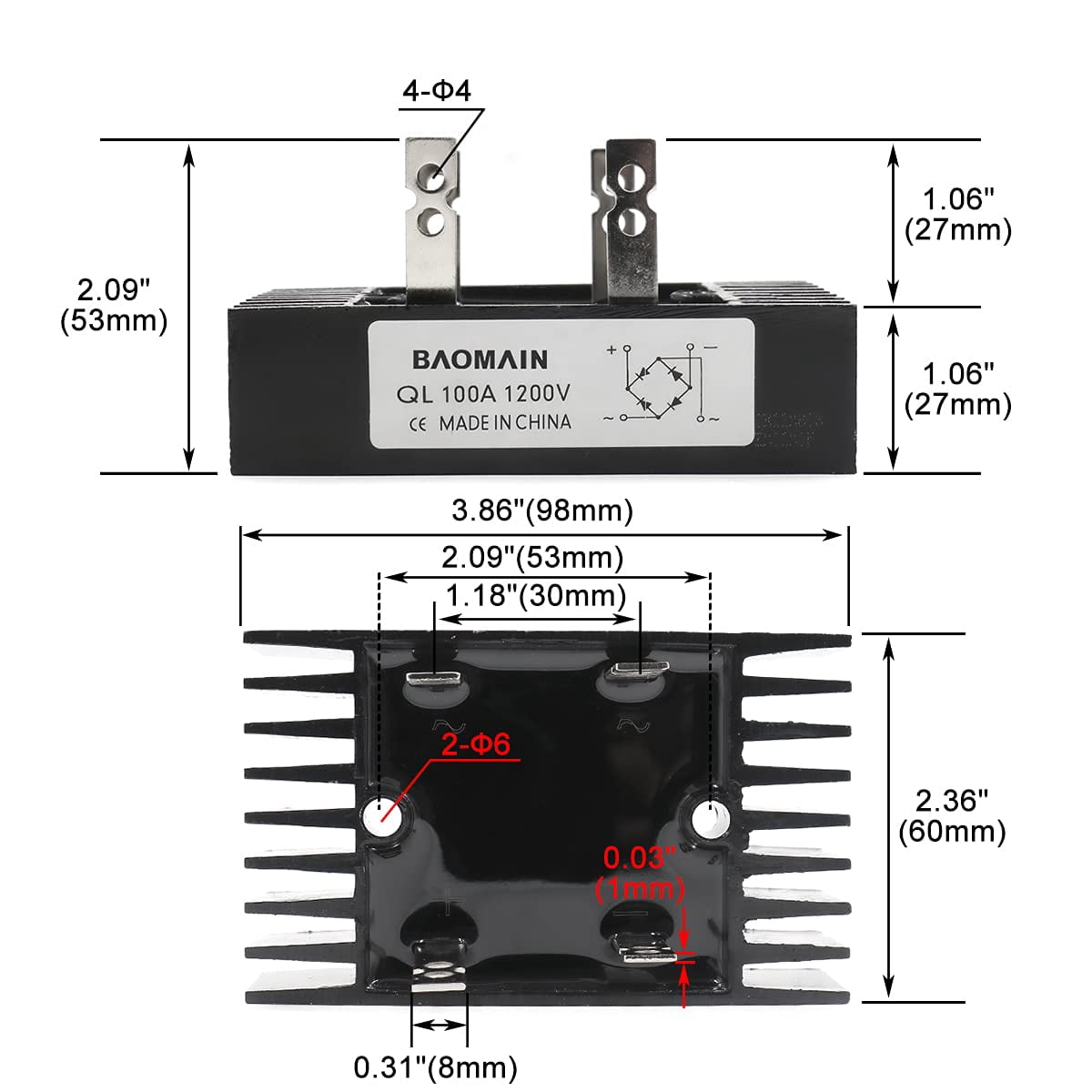

• 【Secure & Easy Installation】 Designed with four sturdy terminals and pre-drilled 7mm fixing holes (45mm spacing), ensuring a secure flush mount on racks or panels for vibration-resistant industrial applications

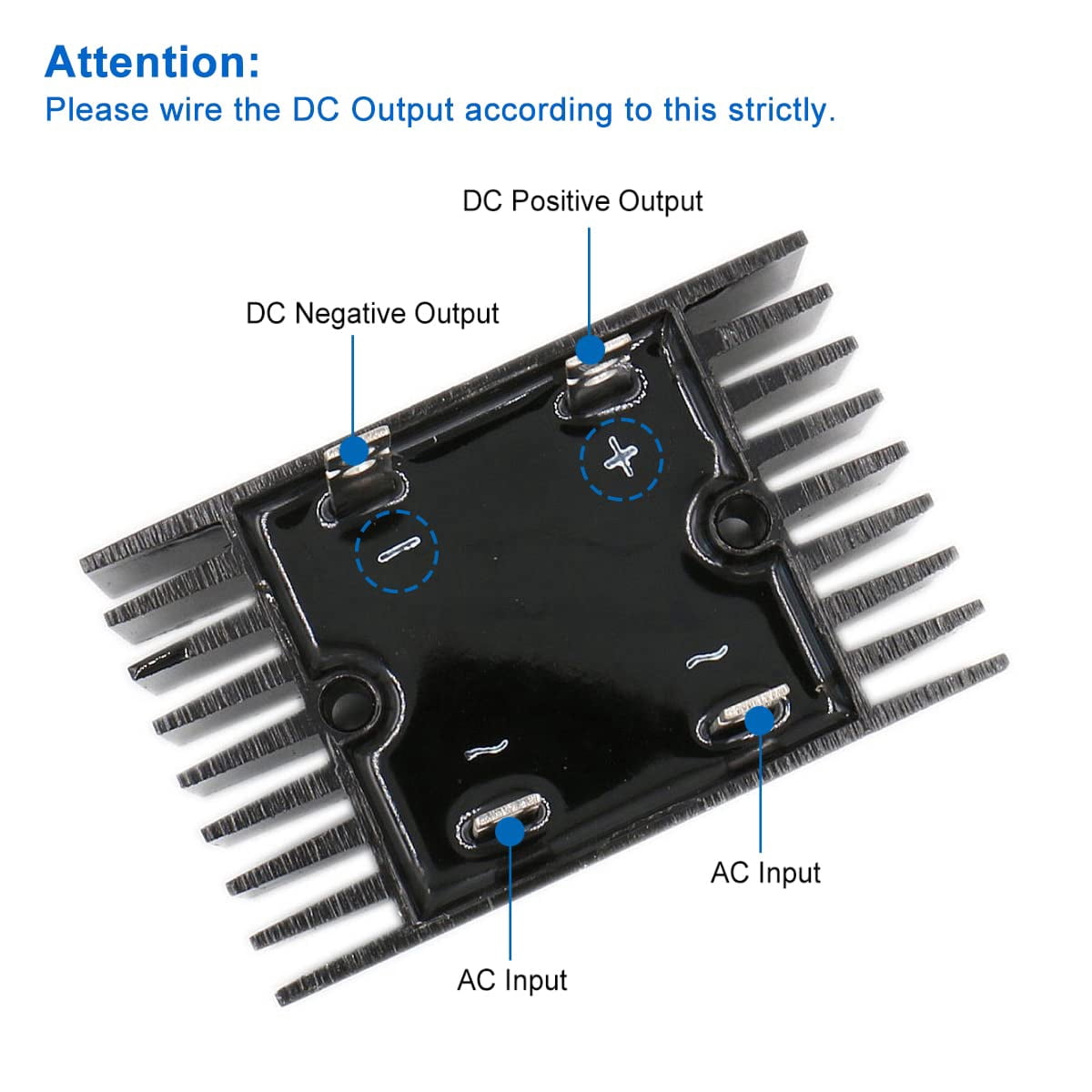

• 【Strict Wiring Safety】 For safe and reliable operation, please ensure the DC output and AC input are wired strictly according to the polarity markings (+, -, ~) as shown in the product images to prevent circuit damage
