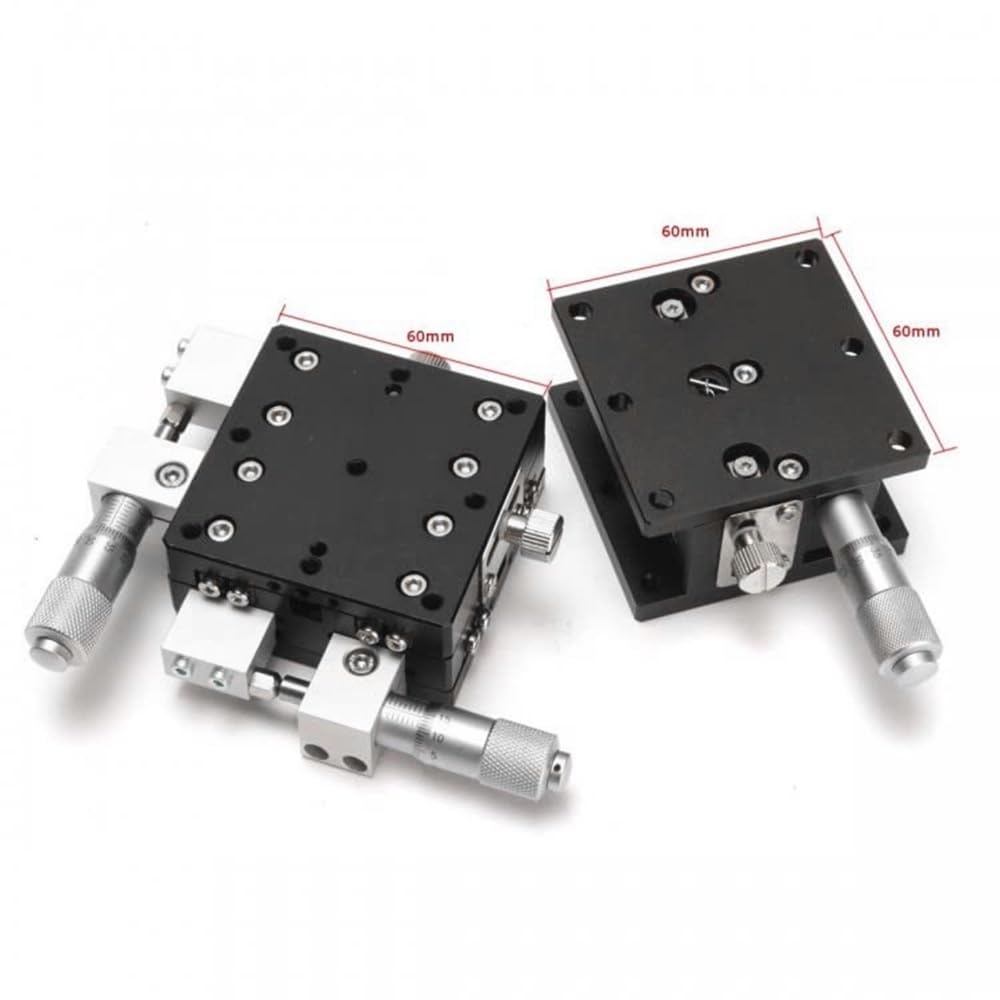

Generic XYZ 3 Axis Manual Linear Stage, 2.36”x2.36” Manual Translation Stage Platform, Precision Trimming Bearing Tuning Platform Sliding Table, Load Capacity 24.5N
Product details
| Management number | 220438565 | Release Date | 2026/05/03 | List Price | US$51.03 | Model Number | 220438565 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
XYZ 3 Axis Manual Linear Stage, 2.36”x2.36” Manual Translation Stage Platform, Precision Trimming Bearing Tuning Platform Sliding Table, Load Capacity 24.5NXYZ linear stage provides high precision linear motion in 3 degrees of freedom, including the XY stage for sample positioning and the Z stage for objective focusingStage Size 2.36×2.36’’, Load Capacity 24.5N/3kgfTravel: XY axis ±6.5mm, Z axis 10mmM4 socket head cap screws requiredMade of aluminum alloySPECIFICATIONModel: LD60-LMSliding Directions: X, Y, Z axisMinimum Scale: 0.01mmAccuracy: 0.03mmPACKAGE1 x XYZ 3 Axis Manual Linear Stage
- XYZ linear stage provides high precision linear motion in 3 degrees of freedom, including the XY stage for sample positioning and the Z stage for objective focusing
- Stage Size 2.36×2.36’’, Load Capacity 24.5N/3kgf
- Travel: XY axis ±6.5mm, Z axis 10mm
- M4 socket head cap screws required
- Made of aluminum alloy
| Brand Name | Generic |
|---|---|
| Unit Count | 1.0 Count |
| Part Number | 3130XYZ-ST |
| Bearing Type | Trimming |
| Manufacturer | Generic |
| Material Type | Aluminum |
| Specification Met | Ld60-lm |
| Included Components | 1 x XYZ 3 Axis Manual Linear Stage |
| Compatible Lubricant | Grease |
